Motor Driver
NY9M (=VLN9M) — 양방향 모터 드라이버

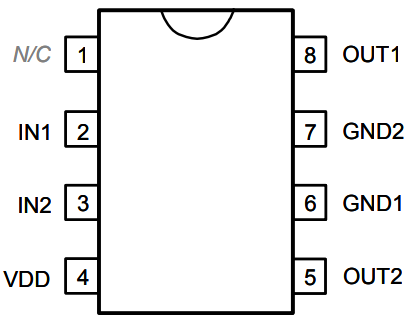

Motor driver ESOP 8 pins
요약VLN05-9MAS8 단일 칩 양방향 모터 드라이버(저전압용). MOSFET 파워 스위치를 내장한 H-브리지로 정회전·역회전·브레이크·정지를 제어합니다.
| model number | Standby Current | input | output | Power dissipation | Output continuous current | channel | TSD |
|---|---|---|---|---|---|---|---|
| VLN05-9MAS8 | <1uA | 2 | 2 | 0.8W | 0.80A | 1 | v |
| VLN08-9MAS8 | <1uA | 2 | 2 | 2.3W | 1.60A | 1 | v |
High Power Driver IC

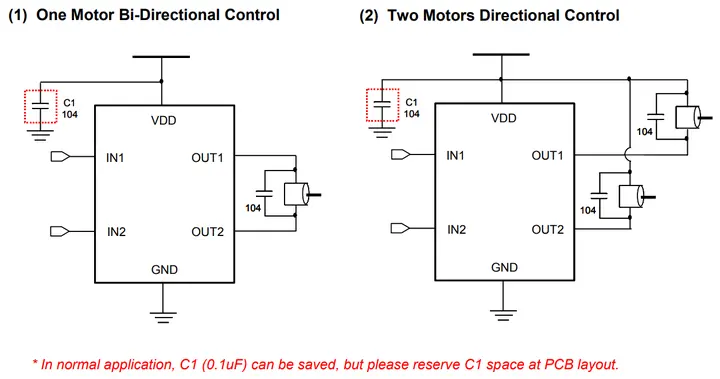

VLN05-9MAS8 is a single-chip bi-directional motor driver CMOS IC for low-voltage applications. It is designed with LSI high technology with a low-power and low-cost process. It has H bridge driver of built-in MOSFET power switch to provide Forward / Reverse / Brake / Stop function for motor driver applications.
Feature
- Wide operating voltage: 1.8V ~ 9.6V.
- H bridge driver of internal PMOS/NMOS power switches.
- Support 4 operating mode: Forward / Backward / Brake / Stop.
- CMOS input. Built-in input pull-low resistance and no current-limit resistance required.
- Low standby current. (Typ.=0.1uA)
- Built-in Thermal Shutdown (TSD) circuit.
- High 5KV Human Body Mode (HBM) ESD protection.
