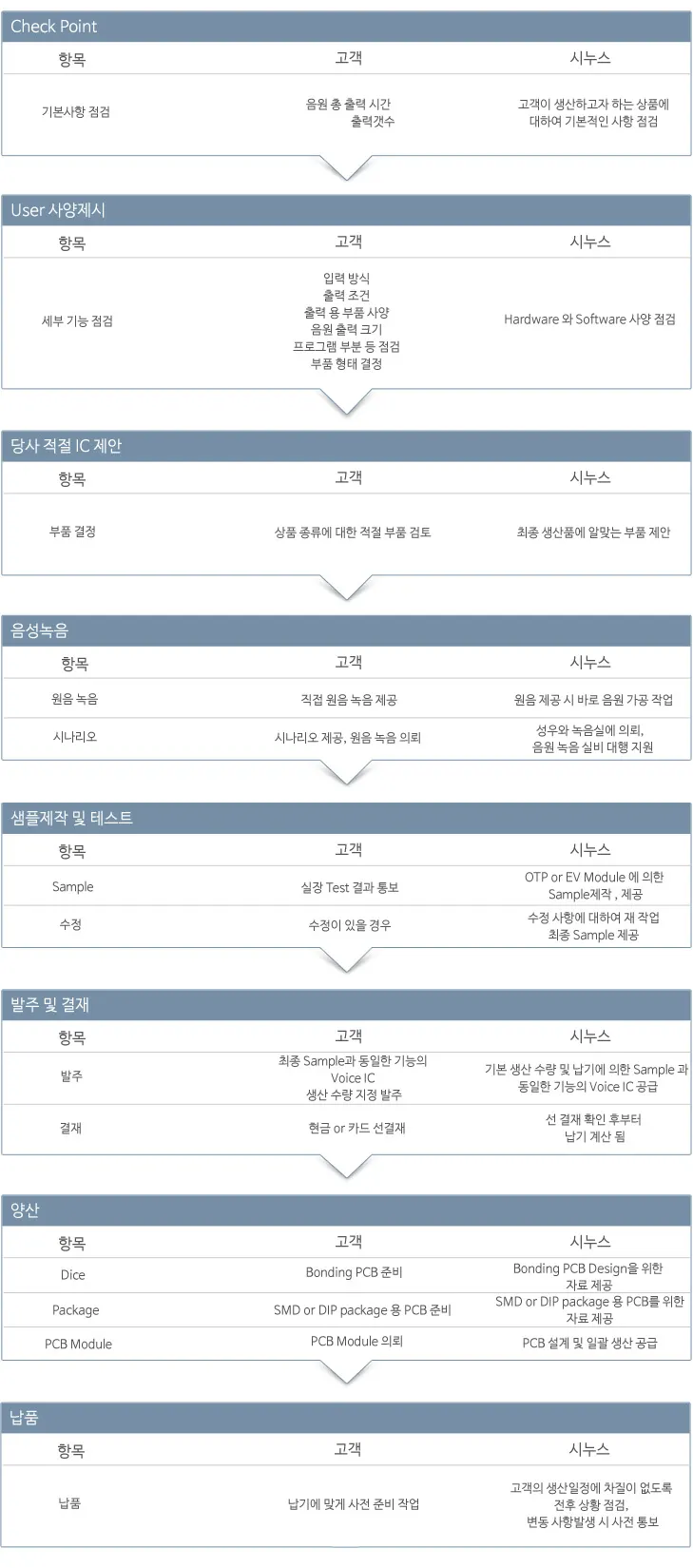

Processing order
Q/A
How to calculate sample rate with memory size?
Sound duration = Memory size / (sample rate x data encoding algorithm)sound duration
(sec) | memory size
(Mbit) | sample rate
(kHz) | encoding algorithm
(bit) | part no. |
63 | 4 | 8 | 8 | VLN1M04 |
42 | 4 | 12 | 8 | VLN1M04 |
31 | 4 | 16 | 8 | VLN1M04 |
125 | 8 | 8 | 8 | VLN1M08 |
83 | 8 | 12 | 8 | VLN1M08 |
63 | 8 | 16 | 8 | VLN1M08 |
500 | 32 | 8 | 8 | VLN1M32 |
333 | 32 | 12 | 8 | VLN1M32 |
250 | 32 | 16 | 8 | VLN1M32 |
sound duration
(sec) | memory size
(bit) | sample reat
(kHz) | encoding algorithm
(bit) | part no. |
34 | 202956 | 6 | 4 | VLN035 |
25 | 202956 | 8 | 4 | VLN035 |
17 | 202956 | 12 | 4 | VLN035 |
8 | 202956 | 24 | 4 | VLN035 |
121 | 727244 | 6 | 4 | VLN115 |
91 | 727244 | 8 | 4 | VLN115 |
61 | 727244 | 12 | 4 | VLN115 |
30 | 727244 | 24 | 4 | VLN115 |
