Motor driver ESOP 8 pins
model number | Standby Current | input | output | Power dissipation | Output continuous current | channel | TSD |
VLN05-9MAS8 | <1uA | 2 | 2 | 0.8W | 0.80A | 1 | v |
VLN08-9MAS8 | <1uA | 2 | 2 | 2.3W | 1.60A | 1 | v |
High Power Driver IC
VLN05-9MAS8 is a single-chip bi-directional motor driver CMOS IC for low-voltage applications. It is designed with LSI high technology with a low-power and low-cost process. It has H bridge driver of built-in MOSFET power switch to provide Forward / Reverse / Brake / Stop function for motor driver applications.
Feature
β’
Wide operating voltage: 1.8V ~ 9.6V.
β’
H bridge driver of internal PMOS/NMOS power switches.
β’
Support 4 operating mode: Forward / Backward / Brake / Stop.
β’
CMOS input. Built-in input pull-low resistance and no current-limit resistance required.
β’
Low standby current. (Typ.=0.1uA)
β’
Built-in Thermal Shutdown (TSD) circuit.
β’
High 5KV Human Body Mode (HBM) ESD protection.

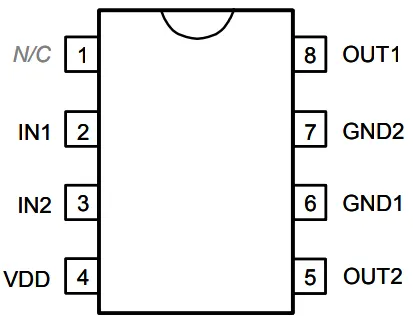

pin assignment

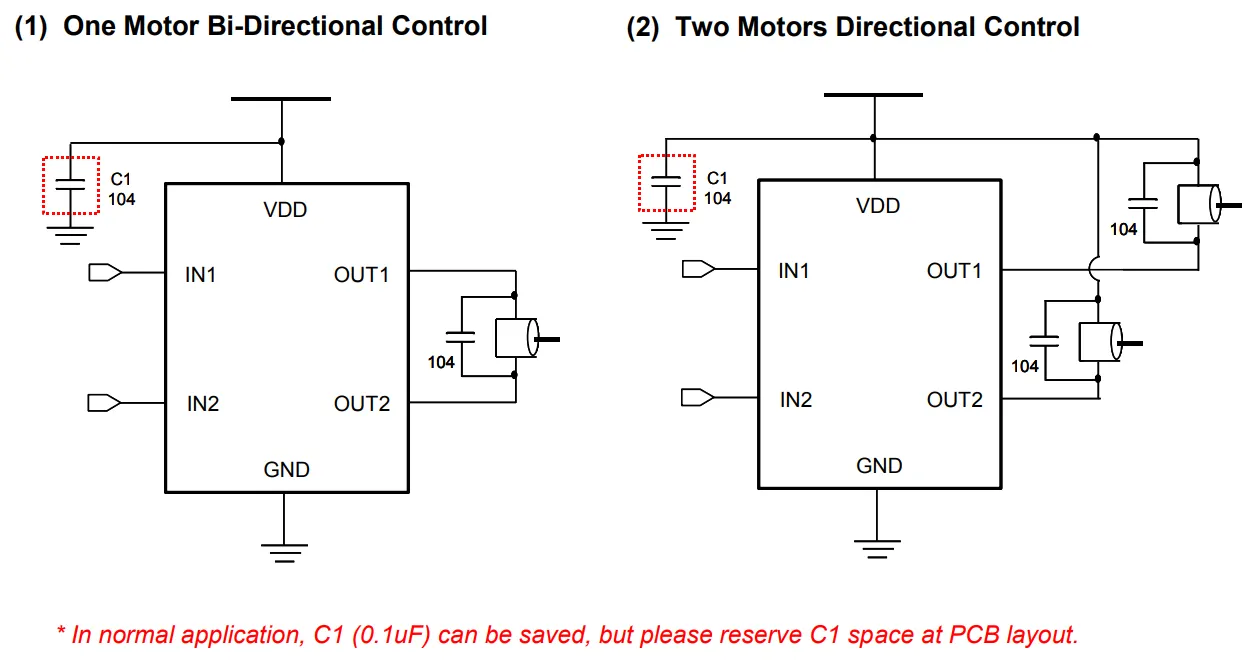

application circuit
datasheet
